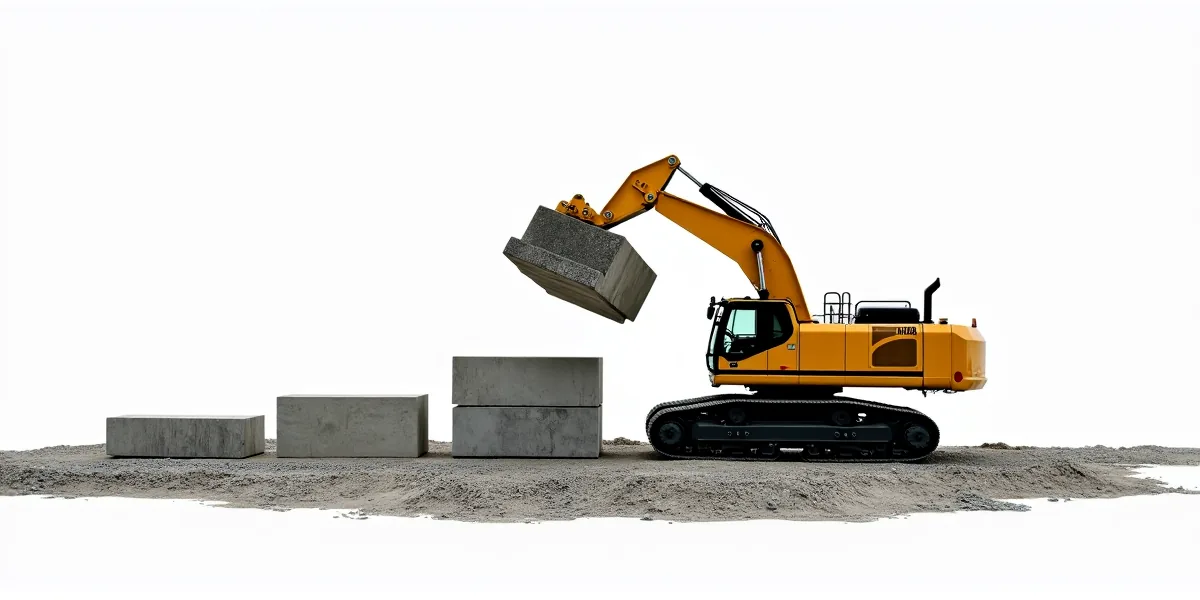

Block Handler Clamping Range

Introduction: Why the Clamping Range Matters More Than You Think

When sourcing a hydraulic block handler for your excavator or wheel loader, it is easy to get fixated on the lifting capacity. You look at the spec sheet, see it can lift 2,000 kg, and assume you are good to go. But in the field, capacity is only half the equation. The other half is the clamping range. If the jaws cannot open wide enough to wrap around your specific block, or if they cannot close tight enough to secure a narrow kerbstone, you have a useless attachment. The clamping range defines the minimum and maximum width the gripping pads can span. It is the critical dimension that determines if the machine can actually handle the material on your site. Getting this wrong means you either cannot grip the block safely, or you are paying for a massive, heavy attachment that you do not need. This guide breaks down how to read those specs, what the standard ranges look like, and how to match the handler to your specific masonry or stone work.

Understanding the Dimensions: What "Clamping Range" Actually Measures

First, let’s clear up a common point of confusion. The clamping range refers strictly to the side-to-side distance between the two gripping pads when they are fully open and fully closed. It does not measure the length or height of the block. For most hydraulic block handlers mounted on excavators or wheel loaders, you are looking at a continuous adjustment range. For example, a standard heavy-duty unit might have a range of 200 mm to 1,200 mm. This means the jaws can grip anything from a small 20 cm paving stone up to a large 120 cm precast retaining block. There is a second critical dimension to check alongside the width: jaw depth. This is the depth of the rubber pad itself. The pad needs to be deep enough to contact the full depth of your block. If your block is 300 mm deep but the handler’s pad is only 200 mm deep, the jaws will not make full contact. This reduces friction and increases the risk of the block sliding out during a lift. Always ensure the pad depth matches or exceeds the block depth you intend to handle.

Standard Clamping Ranges and Typical Applications

While custom builds exist, the market has settled on a few standard ranges that cover the vast majority of construction and landscaping needs. Here is how they typically break down: 1. **Light Duty / Small Handlers (200 mm – 800 mm):** These are ideal for residential landscaping, small retaining walls, and kerbstone installation. If you are working with standard concrete pavers or small interlocking blocks, this is usually the sweet spot. It keeps the attachment lighter, which helps with the excavator’s overall stability. 2. **Standard Heavy-Duty Handlers (200 mm – 1,200 mm):** This is the most popular specification for commercial projects. It covers the standard range of concrete retaining wall blocks, which typically fall between 400 mm and 800 mm in width, but allows you to handle larger precast interlocking blocks up to 1,200 mm. If you are working on a mixed site with various block sizes, this is the safest bet. 3. **Large Custom Handlers (400 mm – 1,500 mm+):** These are built for massive quarry stones or large precast elements. Note that the minimum opening is often higher here (400 mm) because the jaws are physically larger and bulkier. If you need to handle small blocks as well, a custom build with a lower minimum opening is required, but it will be significantly heavier and more expensive. Mechanical block grabs, which use spring or weight activation rather than hydraulics, typically have narrower, fixed adjustment windows, often around 300 mm to 800 mm. They are cheaper but less flexible.

Hydraulic vs. Mechanical Adjustment: How It Affects Your Workflow

The way you adjust the clamping range has a huge impact on productivity. There are two main systems, and choosing the right one depends on how many different block sizes you handle in a single shift. **Hydraulic Continuous Adjustment:** This is the preferred method for excavator-mounted handlers. The operator controls the jaw opening from the cabin using hydraulic cylinders. This allows you to stop the jaws at any width between the minimum and maximum. If you are switching from a small kerbstone to a large retaining block, you can do it in seconds without leaving the machine. This is essential for mixed-size jobs where you are constantly changing material. **Manual Pin-Position Adjustment:** Common in mechanical grabs, this system requires the operator to get out of the machine and move pins into different holes on the grab arm to set the width. These are fixed increments, not infinitely variable. While this setup is cheaper upfront, it is slow. If you are switching block sizes frequently, the downtime required to walk around the machine and re-pin the jaws will eat into your profits. For most professional contractors, the hydraulic option is worth the extra cost. The ability to quickly adapt to different block widths without leaving the cab keeps the workflow moving.

Practical Advice: How to Select the Right Range for Your Site

When you are ready to buy, do not just guess. Follow these steps to ensure you get the right clamping range: 1. **Measure Your Most Common Block:** Take a tape measure to your site or your material supplier. Measure the width of the block you will be handling 80% of the time. This will be your "target" width. 2. **Check the Minimum Opening:** This is where many people make mistakes. If your smallest block is 300 mm wide, you need a handler with a minimum opening of 300 mm or less. If the handler’s minimum is 400 mm, the jaws cannot close fully, and you cannot grip the block safely. 3. **Consider the Maximum Opening for Future-Proofing:** If you think you might take on larger jobs in the future, consider a handler with a wider maximum range. However, remember that as the jaws open wider, the rated lifting capacity decreases. A handler that lifts 1,000 kg at its minimum width might only lift 500 kg at its maximum width. Check the capacity curve, not just the top-end number. 4. **Verify Pad Compatibility:** Ensure the rubber pads are suitable for your surface. For finished stone, you may need softer, thicker pads to prevent scarring. For rough concrete, standard rubber is usually fine. Some models allow you to swap pads, which is a nice feature if you work with both stone and concrete.

Conclusion

The clamping range is not just a number on a spec sheet; it is the gatekeeper of your ability to work. A handler with insufficient range is a liability, causing delays and potential safety hazards. By understanding the difference between minimum and maximum openings, and by matching the adjustment mechanism to your workflow, you can ensure that your block handler is a productive asset rather than a bottleneck. Measure your blocks, check the capacity curve at your required width, and choose hydraulic adjustment if your site involves mixed sizes. Get the range right, and the rest of the job becomes significantly easier.
